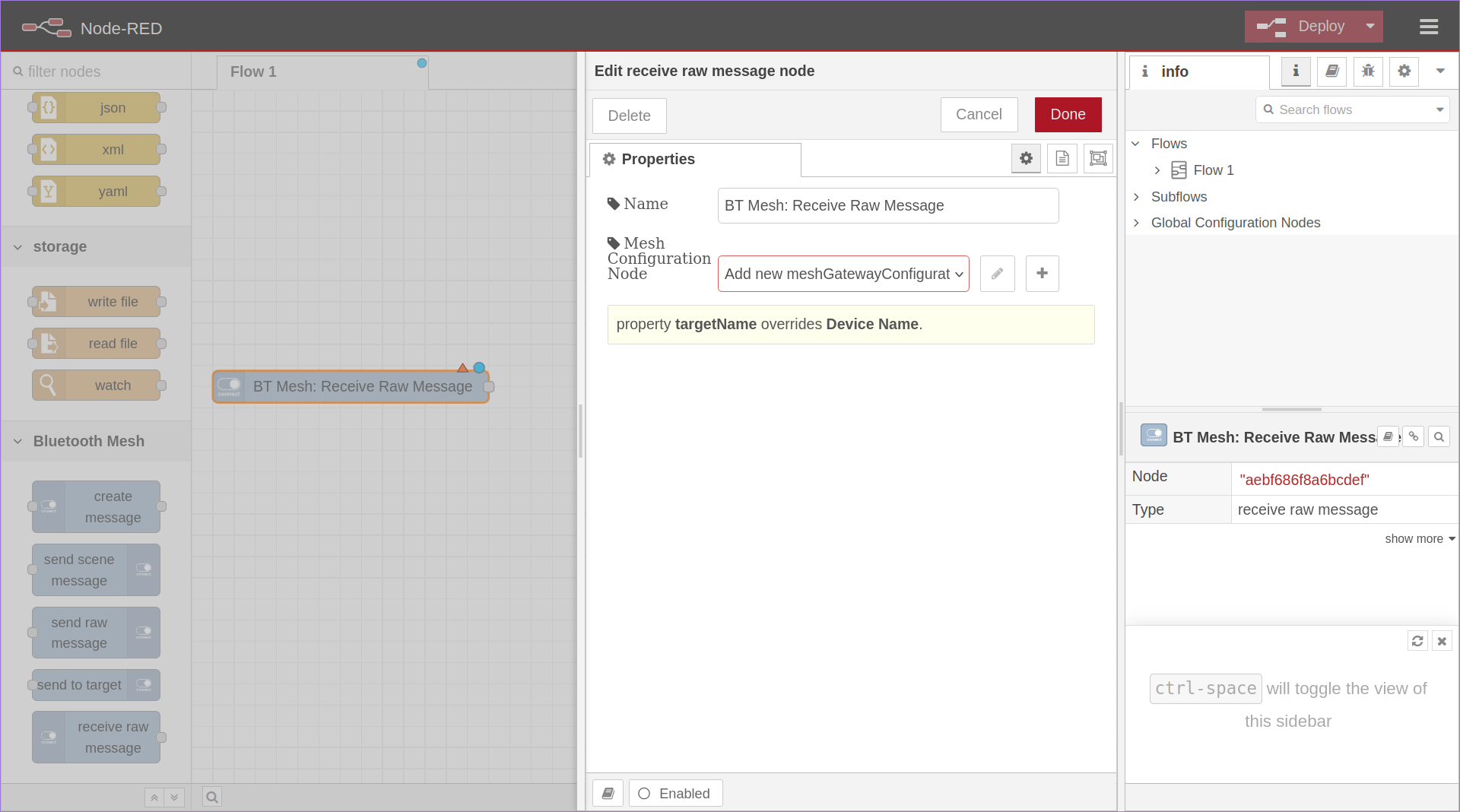

Receive Raw Message

Receive all Connect Mesh Access messages.

Fields

Name

Set name for this node, useful for differentiating.

Mesh Configuration

Select Mesh Configuration according to the gateway in use.

Output Object

This is the interface for the output object:

{
  source: number,
  destination: number,
  opcode: number,
  payload: string
}

Source

Bluetooth® mesh address, unsigned 16 bit integer, between 0 and 65535

Destination

Bluetooth® mesh address, unsigned 16 bit integer, between 0 and 65535.

Opcode

Bluetooth® mesh opcode, unsigned 24 bit integer, between 0 and 16777215.

Payload

String with the hexadecimal encoded payload.
